Tianjin Xinyue Steel Group, has the experience of producing steel pipe for more than 20 years. For different steel pipes, we control strictly on each technical points, in order to serve each project of customers. Common in addition to the oil gas transmission pipeline, pipeline and water drainage, boiler tubes for container. Today with everyone share once common pipe connection.

According to the application and the pipe, the common connection methods are: threaded connection, flange connection, welding, clamping connection, hot melt connection, and socket connection etc,.

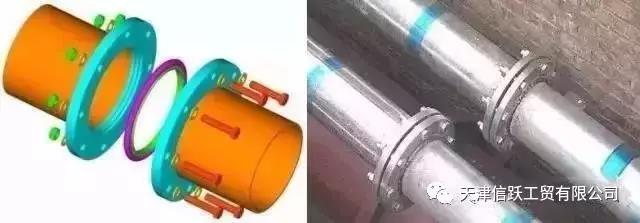

Flange connection

Flange connection is generally used for connecting valves, check valves, water meters, water pumps, and other parts of main roads, as well as pipe sections that need frequent dis-assembly and maintenance.

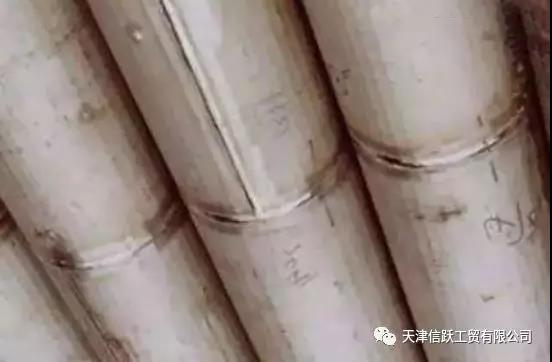

Welding

Welded joints are divided into butt weld, fillet weld and socket weld.

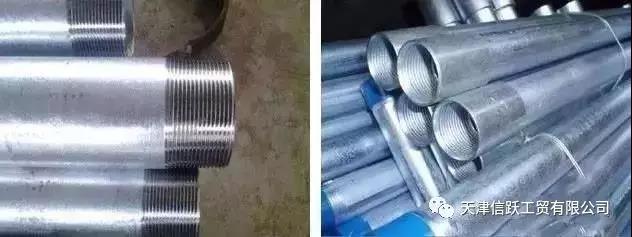

Threaded connection

Threaded connection is to connect with threaded pipe fittings. Galvanized steel pipes with diameter less than or equal to 100mm should be connected with threads, mostly installed in the open air.

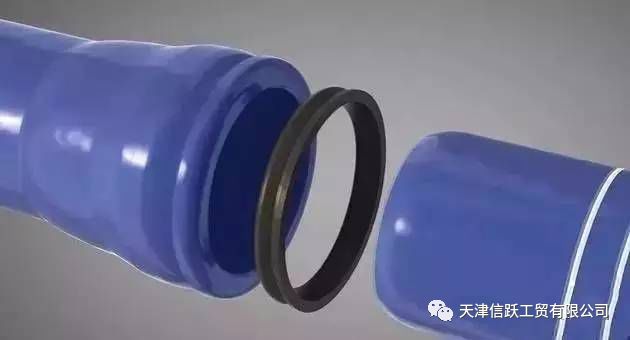

Socket connection

Used for connection of casting iron pipes and fittings for water supply and drainage. There are two types: flexible connection and rigid connection. Flexible connection is sealed by rubber ring. Rigid connection is sealed by asbestos cement or expansive filler, and lead can be used for important occasions.

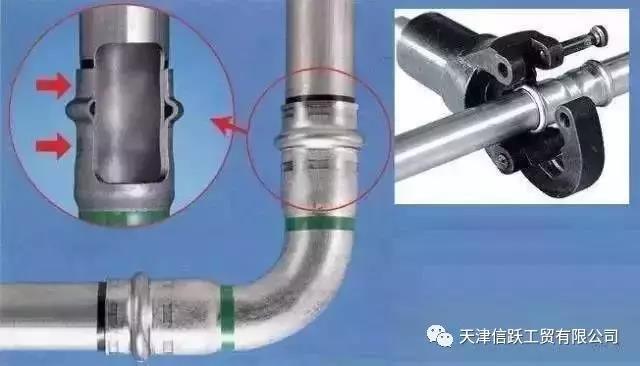

Clamping connection

The stainless steel clamping type pipe fitting connection technology replaces the traditional water supply pipe connection technology such as threads, welding, gluing and the like, and has the characteristics of sanitary water quality protection, strong corrosion resistance, long service life and the like. During construction, a socket pipe fitting with a special sealing ring is connected with the pipe, and a special tool is used for pressing the pipe opening to play a sealing and fastening role.

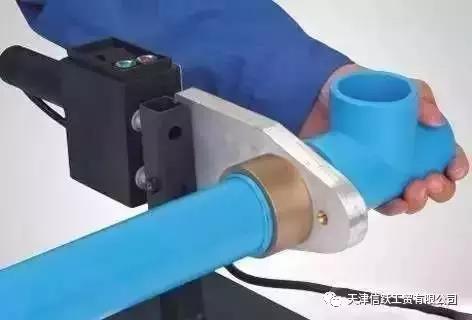

Hot melt connection

The connection method of PPR pipes adopts a fuser for hot melt connection.

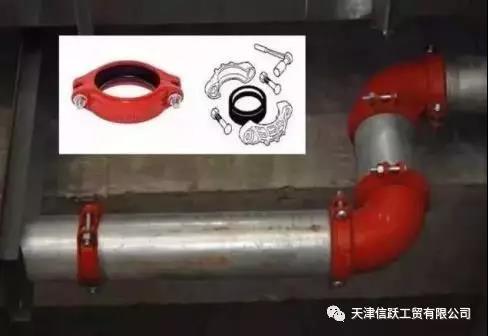

Groove connection

Groove connection can be used for galvanized steel pipes with diameters greater than or equal to 100mm, such as fire water, air conditioning cold and hot water, water supply, rainwater, and other systems, and has the characteristics of simple operation, no influence on the original characteristics of pipelines, safe construction, good system stability, convenient maintenance, labor and time saving, etc.

The above are the common connecting ways of pipelines. Tianjin xinyue has been committed to the practical solutions of various transportation pipelines for a long time. It is necessary to communicate with customers at any time to better serve global projects.

Written by Tony
